IV6 VenuePolar Plugin

You can download the latest IV6 GLL <here>

Note: You will get an import error when attempting to import the IV6 GLL (system definition) if the EF3 version is incompatible with the newer IV6 GLL.

What's New (IV6 GLL v3.20)

• IV6 GLL (v3.20) incorporates automation and allows the user to push array configurations from VenuePolar to EF3 by a button push without having to first manually sync the box count or type in EF3. You can also transfer an array configured in EF3 to VenuePolar with a button push. There is a green status message indicating the direction that the information has been transferred.

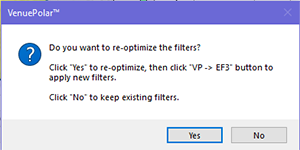

• An option to have VenuePolar re-optimize the filters if the user has made changes to the array on the EF3 side (changing array angle, splay between boxes, or box type).



• Addition of a bill of materials for each array displayed in the report, and a total bill of materials specifying what to order for all of the arrays configured by VenuePolar.

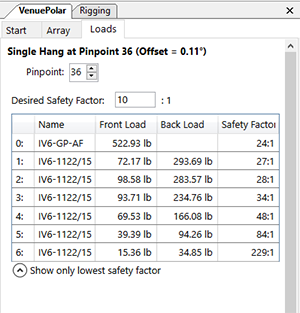

• Addition of the rigging calculator showing loads on each element of the array with pinpoint and offset (if applicable), the rigging options, and the desired safety factor in the Loads tab.

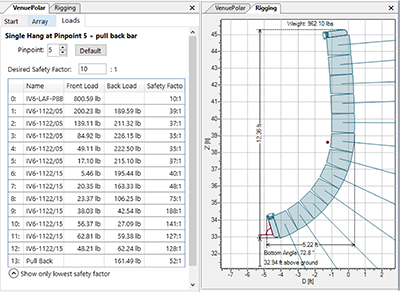

• A pull back bar can now be added to the bottom of an array hung with either the IV6-GP or IV6-LAF. The loads tab will calculate the loads based on the pinpoints now selectable in VenuePolar. Changing the pinpoints will actively change the loads and safety factor for each cabinet. Pinpoints are only visible on VenuePolar Loads tab and are also included in the report.

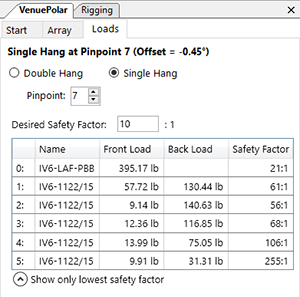

• Choice of a single or dual (default) hang point for the IV6-LAF.

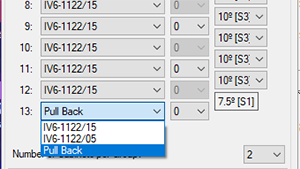

• Up to 23 cabinets are now possible in an array with use of a pull back bar (IV6-LAF). The pull back is a cabinet choice at the bottom of the array and needs to be synced from EF3 to VenuePolar.

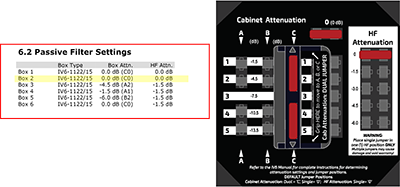

• The position of the HF and Box attenuation columns have been swapped to match the physical cabinet's attenuation panel in the VenuePolar Array tab and the report.


• Changes to the subwoofer Ground Stack selection. The user can configure a ground stack of up to 4 subwoofers now on the EF3 side. (VenuePolar is not applicable for a ground stack option and will return a status message and blank VenuePolar tab).

• Bug fixes - miscellaneous
