You can download the latest LVH GLLs <here>

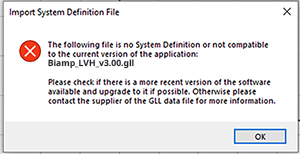

Note: You will get an import error when attempting to import the LVH GLL (system definition) if the EF3 version is incompatible with the newer LVH GLL. You should be using EASE® Focus 3 v3.1.16 or newer.
IMPORTANT: Please review the considerations for LVH lifting hardware in the Loads tab.

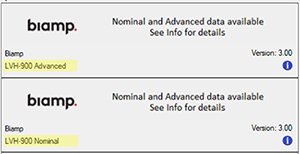

There are two (2) LVH GLL options (Nominal & Advanced). The "Advanced" LVH GLL was created for experienced designers. An article explaining the features and our reasoning is <here>. Most users should start with the LVH Nominal GLL.

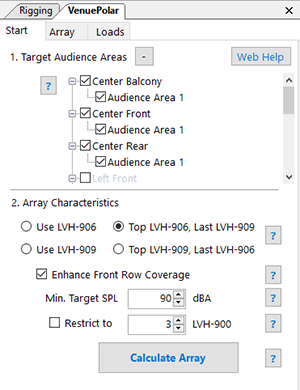

LVH Acoustic Configurator in the VenuePolar tab. This allows the designer to calculate the mechanical configuration of an array based on chosen characteristics.

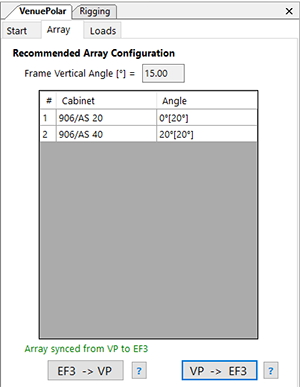

The calculated result will be displayed on the Array Tab which can then be sent to EASE Focus 3 to display in the Properties and View windows.

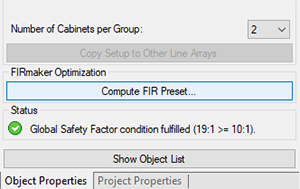

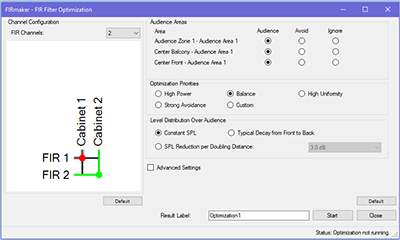

Introduction of an Acoustic Optimizer (using AFMG's FIRmaker technology). The FIRmaker engine Optimizes the performance of an array based on the selected characteristics. FIR filters can be exported in .csv files that can then be loaded into a Biamp ALC (via ArmoníaPlus).
